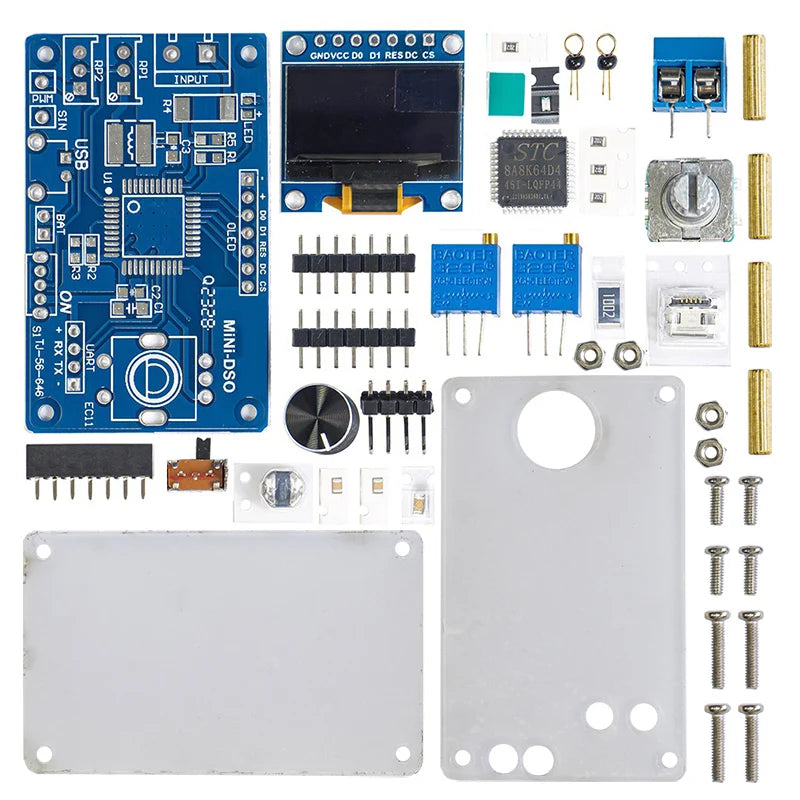

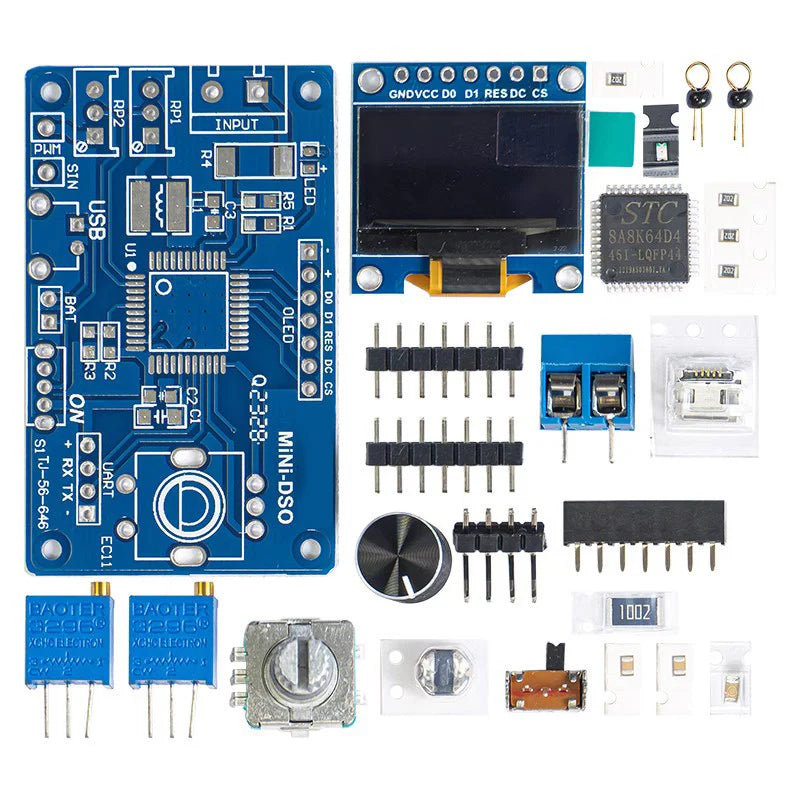

Mini DOS LCD Oscilloscope Kit STC8K8A Single Chip Microcomputer

Mini DOS LCD Oscilloscope Kit STC8K8A Single Chip Microcomputer Electronic Welding Training Production of Loose Parts

Product parameters:

Product Name: MiNi-DSO Microcontroller Oscilloscope Kit

PCB size: 57*34mm

Working voltage:  4-5V

Microcontroller: STC8A8K64S4A12

Display:  0.96-inch OLED display-7P, 128*64 resolution

Number of channels:  single channel

Sec/div: 500ms, 200ms, 100ms, 50ms, 20ms, 10ms, 5ms, 2ms, 1ms, 500us,

200us, 100us (100us is only available in automatic trigger mode)

Voltage range:  0-30V

Sampling level:  10kHz @100us/div

Trigger level:  trigger voltage level.

Trigger slope:  1-rising edge, ↓-falling edge trigger

Trigger mode:  A-automatic mode, N-normal mode, S-single mode.
